Pipe-conveyor-belts
Pipe conveyor belt is one of the best transporting system that has replaced the conventional conveyor system and its related problems like spilling of materials curve layout etc, this belt is suitable for resistance to flex fatigue and abrasion by materials to be carried with superior ply adhesion. it easily manages transportation of difficult materials, especially liquefied materials.
special features
Covered transportation in order to prevent materials form overflowing drop down , scattering and mixing with foreign materials form outside.
It is economical for curve (45° - 90°) and incline (up to 30°) transportation due to easy design of conveyor line and limited space.
Principles of pipe conveying
- In loading area the belt acts as normal troughing conveyor. Thereafter, special idlers are used to form an enclosed chamber like pipe

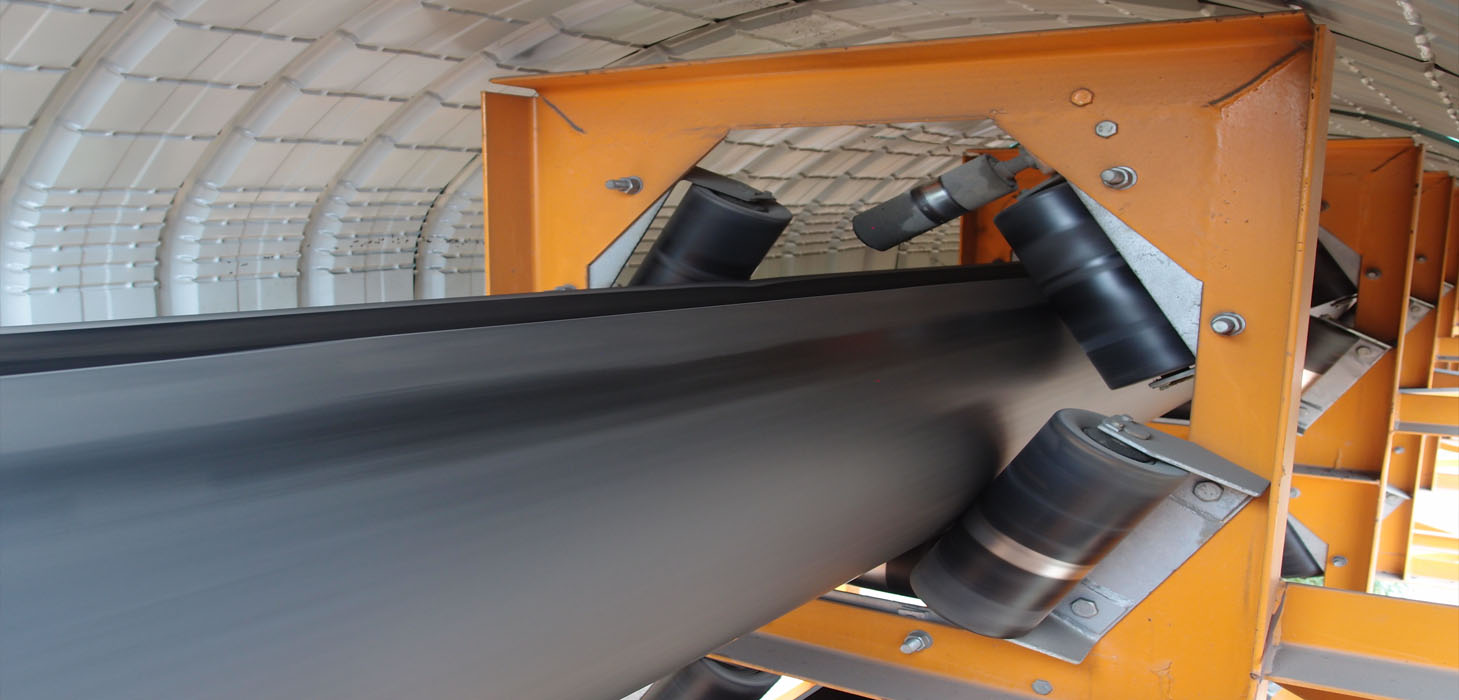

- Hexagonally arranged idler rolls keep the conveyor belt closed over the track. The belt opens at the conveyor head like normal belt to discharge the material.
On its return, the conveyor belt closes again to open up at the loading zone at head conveyor.
PRODUCT APPLICATION
Cement, Chemical, Fertilizers, Power Plants and Food Industries.
FEATURES
- Retains material quality from climatological influences.
- Completely enclosed and dust free transport of material.
- Reduces transit material loss due to spillage of material.
- Protects environment from chemically hazardous material.
- Save space due to larger contact between material and belt allows increased angle of inclination.
- It's flexibility allows to accommodate horizontal and vertical curves to route though difficult terrain inside and outside of the plant.
- Narrow widths of installation and absence of hoods reduces structural material cost substantially.
- No spillage of material from return belt.
