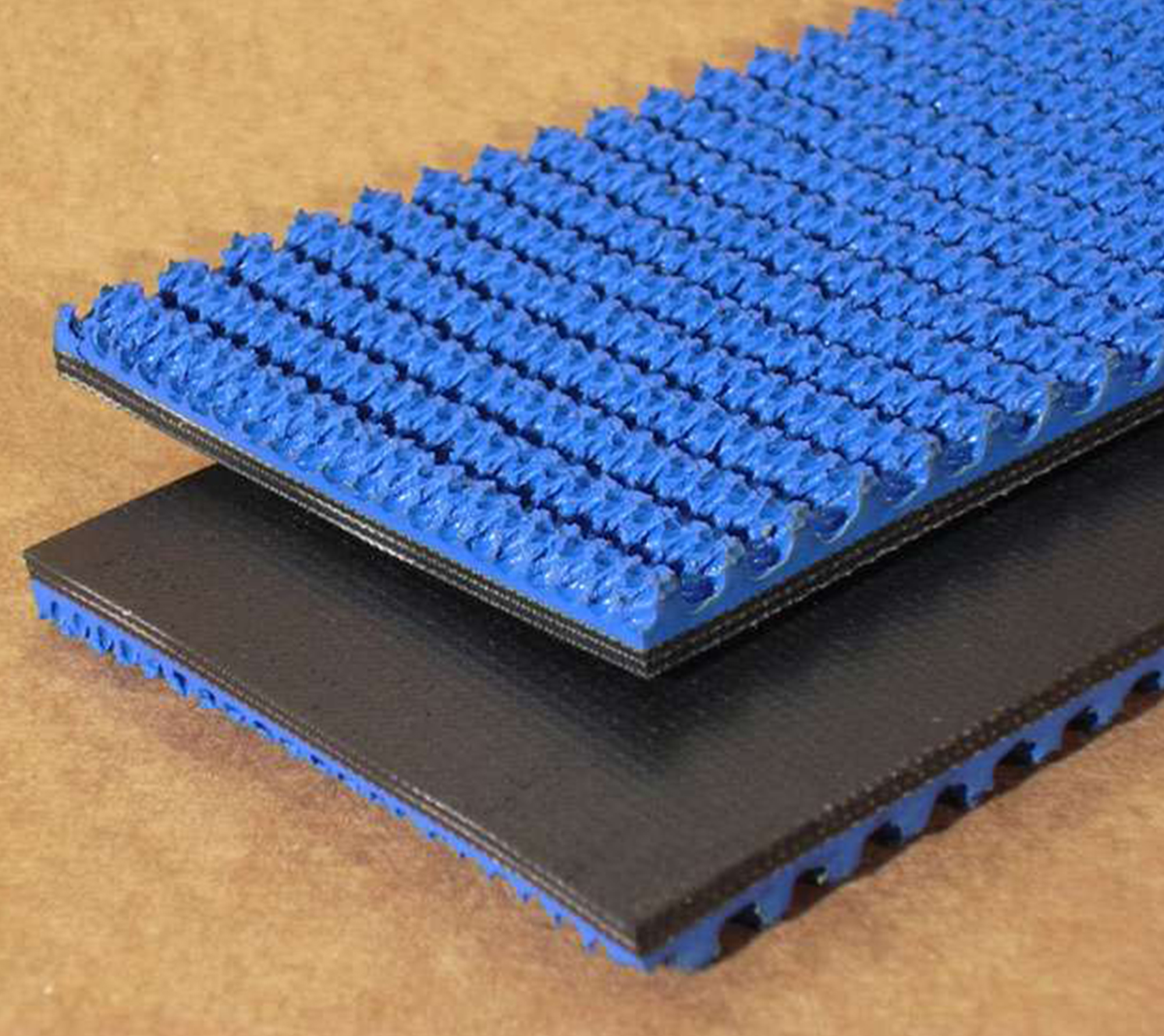

ROUGH TOP BELTS
1. Rough top belts are mainly used in transportation of light weight goods also on inclined surfaces, The special surface absorbs vibrations & impacts and also prevents material from slipping back.
2. The top cover is made of wear resistant rubber with a non slip surface. It has cushioning effect, mollifies & absorbs vibrations & impacts given on transported materials and simultaneously prevents slipping.
3. Due to high inclinations, belts carrying flat packages could have slide back problems. Rough surface belts with profiles are offered for such applications. They have been specially developed for Baggase Handling systems, besides finding wide usage in Cement and Fertilizers plants.
SPECIAL FEATURES
>> Ideal for running over table and flat panel.
>> Black cover for utility applications
>> Available with bare back bottom cover, to give excellent grip to the conveyor belt
>> Provides excellent grip between belt top and packages, such as cartons, jute packages.
>> Tan cover for non marking applications such as packaged food.
>> Available with bare back-bottom cover, to give excellent grip to the conveyor belt.
Belt specifications: Inclined Surface Transportation - Black & Tan
| OUR REF. | NO. OF PLIES | TOP COVER | BOTTOM COVER | STANDARD LENGTH | COLOR | STANDARD WIDTH |
| RT1 | 2 | 1/8"(3.2 mm) | BAREBACK | 200 Meter Per Roll | Black, Grey, Tan | 500 - 1200 MM Cut Edge |
| RT2 | 2 | 1/8"(3.2 mm) | 1/16" (16 mm) | |||
| RT3 | 3 | 1/8"(3.2 mm) | BAREBACK | |||
| RT4 | 3 | 1/8"(3.2 mm) | 1/16" (16 mm) |
